Showing:

Attributes
Diagrams
Facets
Instances
Properties
Used by

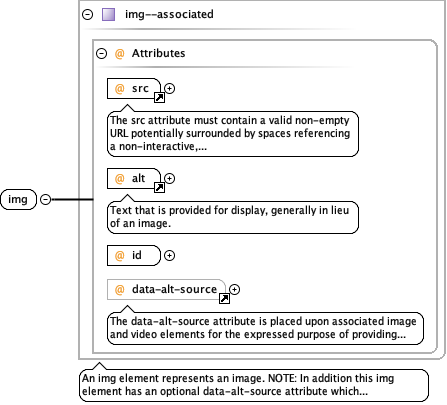

Element aside--associated / img
Diagram
Diagram attributes_xsd_Attribute_src.tmp#src attributes_xsd_Attribute_alt.tmp#alt media_xsd_Complex_Type_img--associated.tmp#img--associated_id attributes_xsd_Attribute_data-alt-source.tmp#data-alt-source media_xsd_Complex_Type_img--associated.tmp#img--associated
Properties
content complex
Attributes
QName Type Use Annotation
alt xs:string required
Text that is provided for display, generally in lieu of an image.
data-alt-source restriction of xs:string optional
The data-alt-source attribute is placed upon associated image and video elements for the expressed purpose of providing a link to a source with download capabilities, such as lds.org/media-library, the need for this may eventually go away in the future.
id id--for-non-annotatable-content required
src restriction of xs:string required
The src attribute must contain a valid non-empty URL potentially surrounded by spaces referencing a non-interactive, optionally animated, image resource that is neither paged nor scripted.

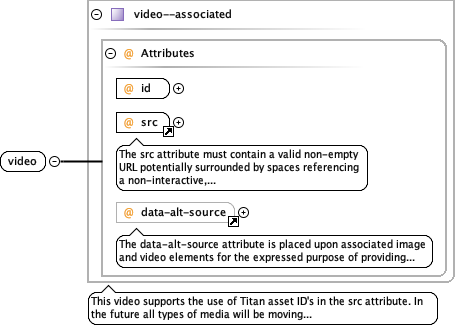

Element aside--associated / video
Diagram
Diagram media_xsd_Complex_Type_video--associated.tmp#video--associated_id attributes_xsd_Attribute_src.tmp#src attributes_xsd_Attribute_data-alt-source.tmp#data-alt-source media_xsd_Complex_Type_video--associated.tmp#video--associated
Properties
content complex
Attributes
QName Type Use Annotation
data-alt-source restriction of xs:string optional
The data-alt-source attribute is placed upon associated image and video elements for the expressed purpose of providing a link to a source with download capabilities, such as lds.org/media-library, the need for this may eventually go away in the future.
id id--for-non-annotatable-content required
src restriction of xs:string required
The src attribute must contain a valid non-empty URL potentially surrounded by spaces referencing a non-interactive, optionally animated, image resource that is neither paged nor scripted.

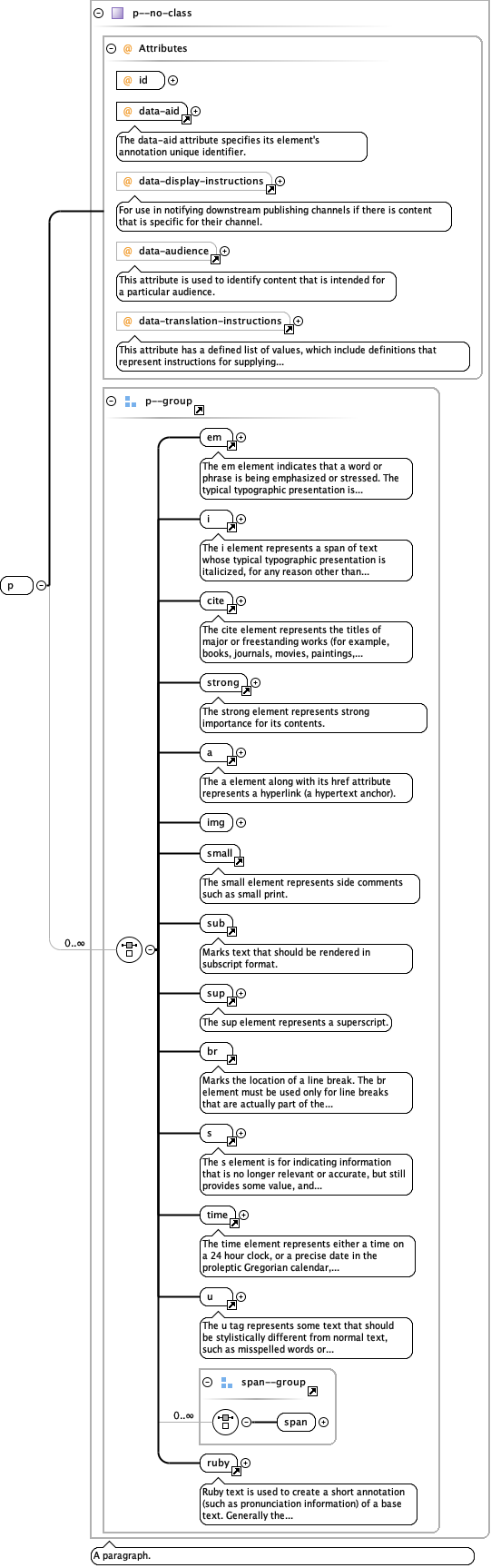

Element aside--associated / p
Diagram
Diagram phrasing_xsd_Complex_Type_p--no-class.tmp#p--no-class_id attributes_xsd_Attribute_data-aid.tmp#data-aid attributes_xsd_Attribute_data-display-instructions.tmp#data-display-instructions attributes_xsd_Attribute_data-audience.tmp#data-audience attributes_xsd_Attribute_data-translation-instructions.tmp#data-translation-instructions phrasing_xsd_Element_em.tmp#em phrasing_xsd_Element_i.tmp#i phrasing_xsd_Element_cite.tmp#cite phrasing_xsd_Element_strong.tmp#strong phrasing_xsd_Element_a.tmp#a phrasing_xsd_Element_Group_p--group.tmp#p--group_img phrasing_xsd_Element_small.tmp#small phrasing_xsd_Element_sub.tmp#sub phrasing_xsd_Element_sup.tmp#sup phrasing_xsd_Element_br.tmp#br phrasing_xsd_Element_s.tmp#s phrasing_xsd_Element_time.tmp#time phrasing_xsd_Element_u.tmp#u phrasing_xsd_Element_Group_span--group.tmp#span--group_span phrasing_xsd_Element_Group_span--group.tmp#span--group phrasing_xsd_Element_ruby.tmp#ruby phrasing_xsd_Element_Group_p--group.tmp#p--group phrasing_xsd_Complex_Type_p--no-class.tmp#p--no-class
Properties
content complex
mixed true
Children a, br, cite, em, i, img, ruby, s, small, span, strong, sub, sup, time, u
Instance

<p data-aid="" data-audience="" data-display-instructions="" data-translation-instructions="" id="">
  <em itemprop="" itemscope="" itemtype="">{1,1}</em>
  <i itemprop="" itemscope="" itemtype="">{1,1}</i>
  <cite itemprop="" itemscope="" itemtype="">{1,1}</cite>
  <strong itemprop="" itemscope="" itemtype="">{1,1}</strong>
  <a class="" itemprop="" itemscope="" itemtype="">{1,1}</a>
  <img alt="" class="" data-deprecate-style="" data-deprecate-web-url="" itemprop="" itemscope="" itemtype="" src="">{1,1}</img>
  <small>{1,1}</small>
  <sub>{1,1}</sub>
  <sup class="">{1,1}</sup>
  <br>{1,1}</br>
  <s>{1,1}</s>
  <time datetime="" itemprop="" itemscope="" itemtype="">{1,1}</time>
  <u class="" itemprop="" itemscope="" itemtype="">{1,1}</u>
  <span class="" data-translation-instructions="" itemprop="" itemscope="" itemtype="">{1,1}</span>
  <ruby>{1,1}</ruby>
</p>
Attributes
QName Type Use Annotation
data-aid xs:string required
The data-aid attribute specifies its element's annotation unique identifier.
data-audience restriction of xs:string optional
This attribute is used to identify content that is intended for a particular audience.
data-display-instructions restriction of xs:string optional
For use in notifying downstream publishing channels if there is content that is specific for their channel.
data-translation-instructions restriction of xs:string optional
This attribute has a defined list of values, which include definitions that represent instructions for supplying content to translation services. This attribute should only be used if some sort of pre-processing is necessary to support translation of the content.
id id--for-annotatable-content required
Complex Type aside--associated
Diagram
Diagram aside_xsd_Complex_Type_aside--associated.tmp#aside--associated_class aside_xsd_Complex_Type_aside--associated.tmp#aside--associated_data-content-type aside_xsd_Complex_Type_aside--associated.tmp#aside--associated_id attributes_xsd_Attribute_data-anchor.tmp#data-anchor aside_xsd_Complex_Type_aside--associated.tmp#aside--associated_img aside_xsd_Complex_Type_aside--associated.tmp#aside--associated_video aside_xsd_Complex_Type_aside--associated.tmp#aside--associated_p
Used by
Element content--associated/body/aside
Children img, p, video
Attributes
QName Type Use Annotation
class union of(more-info) required
data-anchor restriction of xs:string required
The data-anchor attribute is required for all associated content media and related resources. Its value must be a relative link that identifies the point in the parent content that the associated content should be anchored to.
data-content-type data-content-type--for-associated-asides required
id id--for-non-annotatable-content required
Attribute aside--associated / @class
Properties
use required
Used by
Complex Type aside--associated
Attribute aside--associated / @data-content-type
Properties
use required
Facets
enumeration image
An image attribute value for the "more-info" associated aside is used to identify the contents of the aside.
enumeration text
A text attribute value for the "more-info" associated aside is used to identify the contents of the aside.
enumeration video
A video attribute value for the "more-info" associated aside is used to identify the contents of the aside.
enumeration pdf
A pdf attribute value for the "more-info" associated aside is used to identify the contents of the aside.
Used by
Complex Type aside--associated
Attribute aside--associated / @id
Properties
use required
Facets
pattern (\i\c*) & ([\i-[:]][\c-[:]]*) & ([a-z][a-z0-9_]+)
Used by
Complex Type aside--associated
