Showing:

Attributes
Diagrams
Instances
Properties
Used by
Element figure / header

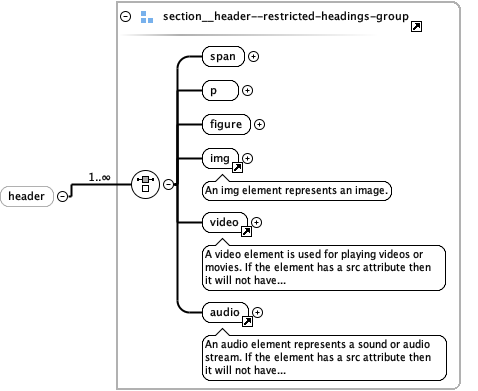

Diagram
Diagram section_xsd_Element_Group_section__header--restricted-headings-group.tmp#section__header--restricted-headings-group_span section_xsd_Element_Group_section__header--restricted-headings-group.tmp#section__header--restricted-headings-group_p section_xsd_Element_Group_section__header--restricted-headings-group.tmp#section__header--restricted-headings-group_figure media_xsd_Element_img.tmp#img media_xsd_Element_video.tmp#video media_xsd_Element_audio.tmp#audio section_xsd_Element_Group_section__header--restricted-headings-group.tmp#section__header--restricted-headings-group
Properties
content complex
minOccurs 0
maxOccurs 1
Children audio, figure, img, p, span, video
Instance

<header>
  <span class="" data-page="">{1,1}</span>
  <p class="" data-aid="" data-audience="" data-deprecate-style="" data-display-instructions="" data-translation-instructions="" id="" itemprop="" itemscope="" itemtype="">{1,1}</p>
  <figure class="" data-audience="" data-deprecate-style="" data-display-instructions="" id="">{1,1}</figure>
  <img alt="" class="" data-audience="" data-deprecate-style="" data-deprecate-web-url="" data-display-instructions="" data-scale="" id="" itemprop="" itemscope="" itemtype="" src="">{1,1}</img>
  <video data-account-id="" data-audience="" data-display-instructions="" data-player-id="" data-player-key="" data-time-end="" data-time-start="" id="" src="">{1,1}</video>
  <audio data-audience="" data-display-instructions="" id="" src="">{1,1}</audio>
</header>
Complex Type figure
Diagram
Diagram figure_xsd_Complex_Type_figure--attributes.tmp#figure--attributes_class figure_xsd_Complex_Type_figure--attributes.tmp#figure--attributes_id attributes_xsd_Attribute_data-display-instructions.tmp#data-display-instructions attributes_xsd_Attribute_data-audience.tmp#data-audience attributes_xsd_Attribute_data-deprecate-style.tmp#data-deprecate-style figure_xsd_Complex_Type_figure--attributes.tmp#figure--attributes figure_xsd_Complex_Type_figure.tmp#NO_NAMESPACE_figure_header figure_xsd_Element_figure.tmp#figure aside_xsd_Element_aside.tmp#aside phrasing_xsd_Element_Group_content--restricted-headings-group.tmp#content--restricted-headings-group_span phrasing_xsd_Element_Group_content--restricted-headings-group.tmp#content--restricted-headings-group_section phrasing_xsd_Element_Group_content--restricted-headings-group.tmp#content--restricted-headings-group_p lists_xsd_Element_dl.tmp#dl lists_xsd_Element_ul.tmp#ul phrasing_xsd_Element_Group_content--restricted-headings-group.tmp#content--restricted-headings-group_ol media_xsd_Element_img.tmp#img media_xsd_Element_video.tmp#video media_xsd_Element_audio.tmp#audio table_xsd_Element_table.tmp#NO_NAMESPACE_table blockquote_xsd_Element_blockquote.tmp#blockquote nav_xsd_Element_nav.tmp#nav div_xsd_Element_Group_div--group.tmp#div--group_div div_xsd_Element_Group_div--group.tmp#div--group phrasing_xsd_Element_Group_content--restricted-headings-group.tmp#content--restricted-headings-group_a phrasing_xsd_Element_hr.tmp#hr phrasing_xsd_Element_Group_content--restricted-headings-group.tmp#content--restricted-headings-group figure_xsd_Element_figcaption.tmp#figcaption footer_xsd_Element_footer.tmp#footer
Used by
Children a, aside, audio, blockquote, div, dl, figcaption, figure, footer, header, hr, img, nav, ol, p, section, span, table, ul, video
Attributes
QName Type Use Annotation
class union of(chalkboard, diagram, handout, image, video, map, table, word-strip, music, for-teacher, teaching-method, excerpt) required
data-audience restriction of xs:string optional
This attribute is used to identify content that is intended for a particular audience.
data-deprecate-style restriction of xs:string optional
During the digital production process for ldsXML there was style information added downstream. During the schemas development the working group has explicitly chosen not to add style information to the content, instead they are relying on semantic based values. This attribute will temporarily store those values. The reason for doing this it keep these values close at hand for a season just in case we need it during the migration period. It is intended to be deprecated from the content and the schema as soon as it is prudent.
data-display-instructions restriction of xs:string optional
For use in notifying downstream publishing channels if there is content that is specific for their channel.
id id--for-non-annotatable-content required
XML Schema documentation generated by ® XML Editor.
